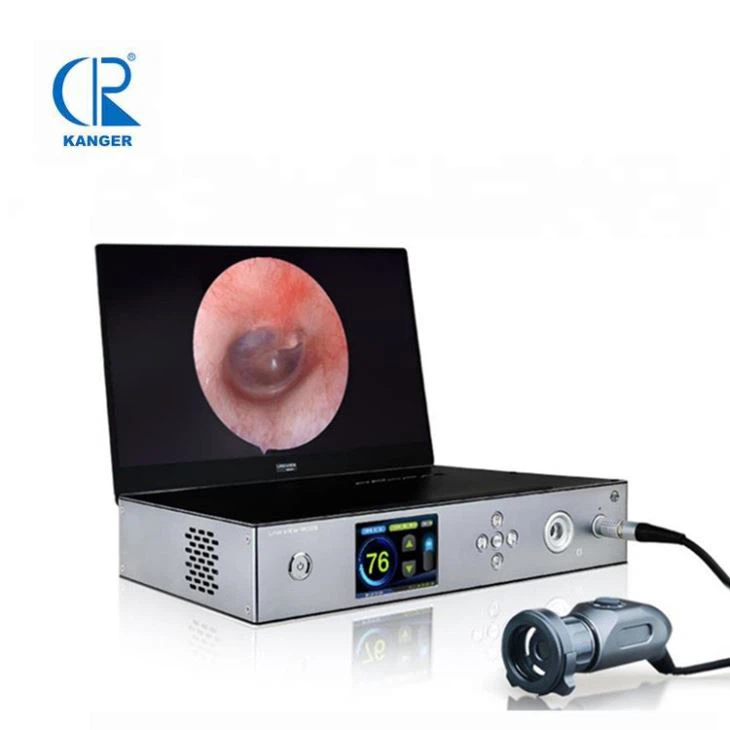

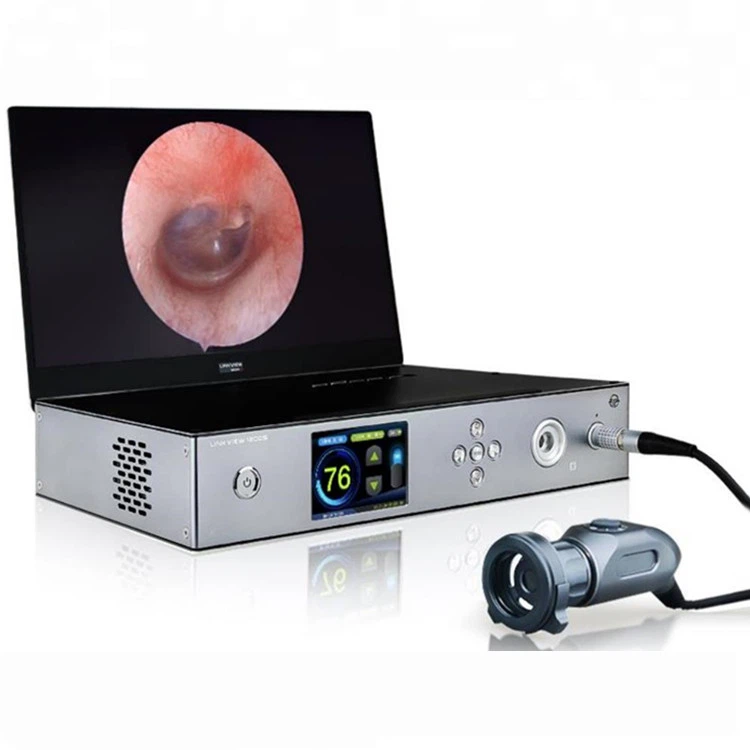

Full HD Endoscopy Camera

Contact now

Operation Instruction

1. In the use of the product, you must be strict compliance with the electrical safety regulations of

the nation and region.

2. Please make sure that the plug is firmly connected on the power socket.

3. If the product does not work properly, please contact your dealer or the nearest service center.

Never attempt to disassemble the camera yourself. (We shall not assume any responsibility for

problems caused by unauthorized repair or maintenance.)

4. Do not touch CMOS modules with fingers. If cleaning is necessary, use clean cloth with a bit of

ethanol and wipe it gently. If the camera will not be used for an extended period, please turn on

the lens cap to protect the CMOS from dirt.

5. Do not aim the camera at the sun or extra bright places. A blooming or smear may occur

otherwise (which is not a malfunction however), and affecting the endurance of CMOS at the

same time.

6. The CMOS may be burned out by a laser beam, so when any laser equipment is on using,

make sure that the surface of CMOS will not be exposed to the laser beam.

7. Do not place the camera in extremely hot, cold(the operating temperature shall be－10℃～＋

60℃ ), dusty or damp locations, and do not expose it to high electromagnetism radiation.

8. Keep the camera away from wet environment while not using

TECHNICAL DATA
1	Sensor	1/9 IMX CMOS	OUTPUT INTERFACE	HDMI,USB3.0
2	Pixels	2130000 PIXELS	OUTPUT RESOLUTION	1920*1080/60FPS
3	Digital zoom	1-16X	WHITE BALANCE	AUTO/AUTO EXT/PRESET/MANUAL
4	Image Freeze	YES	BRIGHTNESS ADJUSTMENT	YES
5	SNR	>42DB(AGC OFF)	MIN-ILLUMINATION	0.00017 LUX
6	Image Morror	YES	BLX&HLC	YES
7	Light source	LED	LUX	4000000LUX
8	LCD size	15.6''	LCD RESOLUTION	3840*2160(UHD)
9	Gamut	100% ADOBE RGB	SUPPORT COLOUR	16.7M(8-BIT)
10	Work mode	IPS	VIEWING ANGLE	89/89/89/89
11	Luminance	500cd/m2	CONTRAST RATIO	1000:1
12	Power Assumption	1400W	NET WEIGHT	4.5KG
13	Input Voltage	AC110V-240V 50/60HZ	DIMENSION	370mm*240mm*75mm
14	Noise	30dB	ENVIRONMENT	5-40℃

Time &Temperature Indicator

1. Current running time, total working time and temperature of light are indicated on top of the screen. 2. Normal temperature is under 70℃, If the temperature of light source increase to 70℃, please check fans. 3. The 2 timers are for light source only,camera working time is not counted 4. The total running time maybe not zero as we need to test before shipping.
